Smoke Oven Airmaster UK 7500BE-FR1002 Reich 3 Trolley
Description

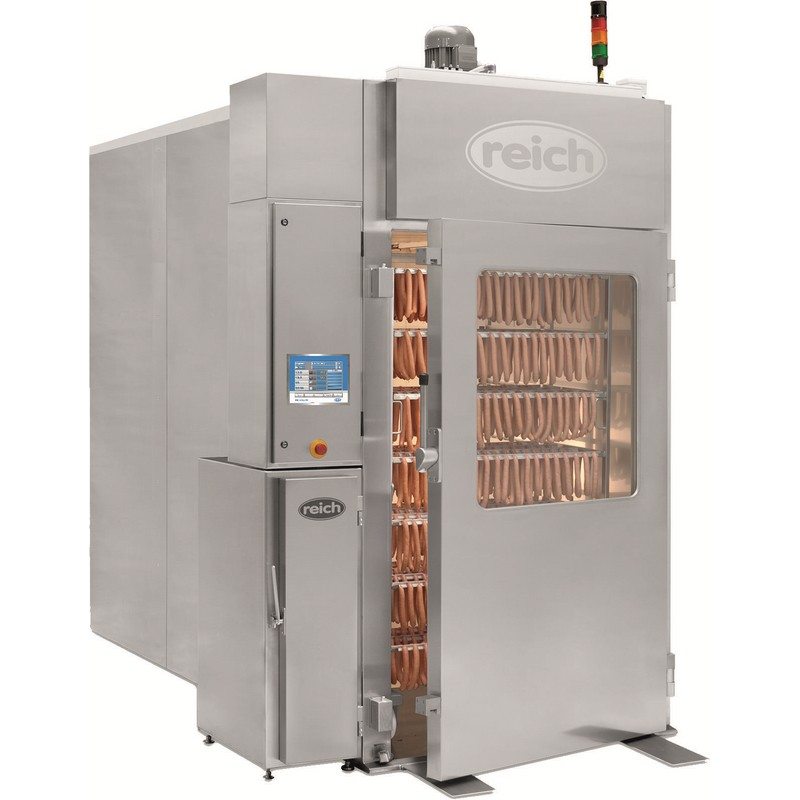

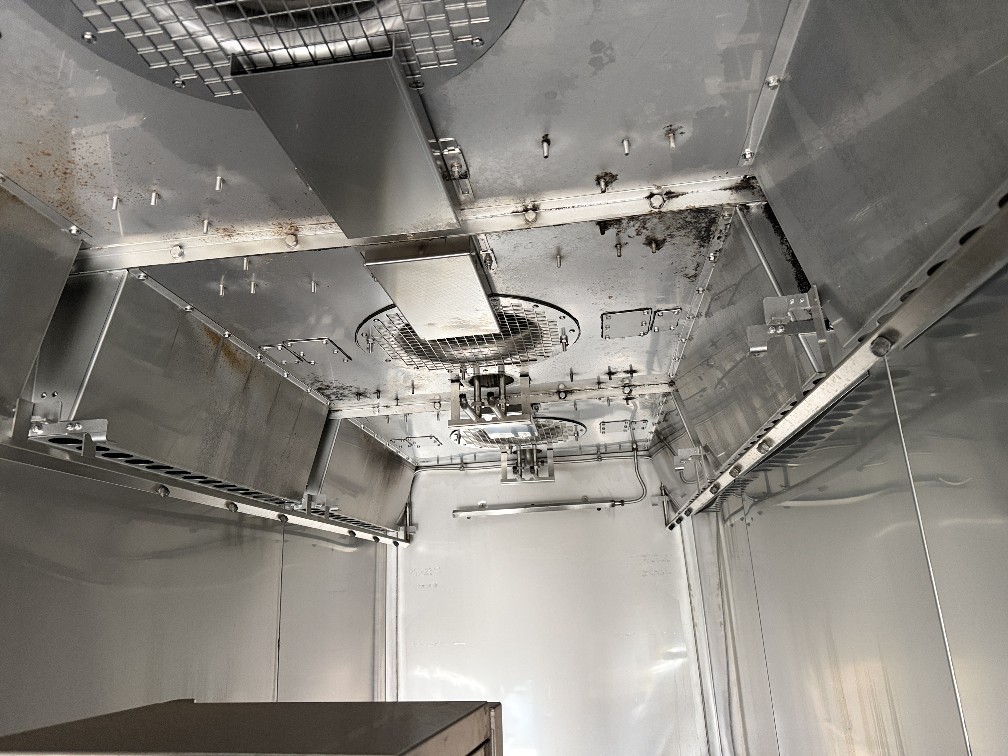

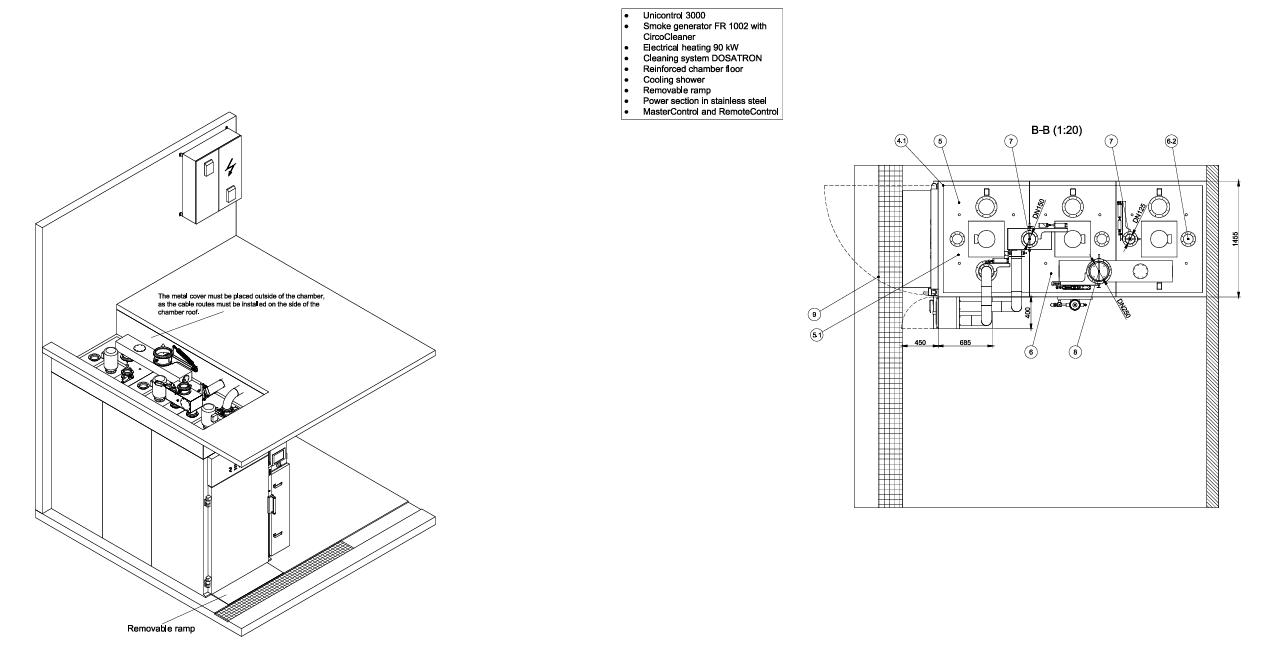

REICH AIRMASTER UK 7500 BE, for 3 trolleys 1000 x 1000 x 2000 mm
Smoke generator REICH FrictionSmoker FR 1002, for wood logs 80 x 80 x 1000 mm
Control UNICONTROL 3000, in controller box 400 x 600 x 250 mm
Electrical consumers
Due to these data, the cross sections of the main supply lines and the master fuses have to be examined
and calculated, according to the local regulations:UK 7500 BE – FR 1002:
Fan motors (3x 5,5 kW=) 16,5 kW ( ~36,0 A)
Electric heating (18x 5 kW=) 90,0 kW ( ~130,0 A)
Smoke generator FR 1002 5,5 kW ( ~ 12,0 A)
Control 0,5 kW ( ~ 2,0 A)
Total ~112,5 kW (~180,0 A)
